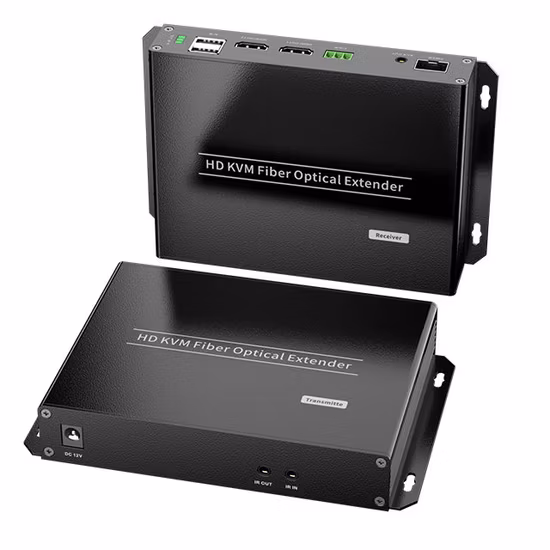

HDMI/DVI/SDI Audio & Video to Fiber Optic Converter Extender
1. Product Name4K 60Hz RJ45 CAT6 KVM USB HDMI 2.0 Extender with Audio IR RS232 2. Description HDMI2.0 Extender over cat6
Send your inquiryDESCRIPTION
Basic Info
Model NO. | HD- Fiber Extender |
Control | Wired |
Interface Type | HDMI |
Distance | 100m |
Rack Mount | Support |
OEM & ODM | Available |
Resolution | [email protected] |
Feature | Real Time, Uncompressed |
Function | Signal Transmission |
Transport Package | Carton |
Trademark | HCSTCOM |
Origin | Beijing, China |
Production Capacity | 100000 PCS/Year |
Product Description
1. Product Name4K 60Hz RJ45 CAT6 KVM USB HDMI 2.0 Extender with Audio IR RS232
2. Description
HDMI2.0 Extender over cat6/6A/7 extends HDMI2.0 signals to remote places. It could extend [email protected] HDMI video signal up to 100 meter with normal 8 core cat/6/7 cable with 3840*2160 60Hz resolution. Comptible with HDMI1.4, HDMI1.3 version, High bandwidth, plays real time HD video at remote places. Widely used in computing and surveillance systems, big screen advertisement system, video wall, bank, stock market, education system etc
3. Main Features
Support HDMI2.0, compatible with HDMI1.3; DVI 1.0
Compatible with HDCP 2.2Support bidirectional IR, RS232Support USB Keyboard and mouse
IEEE-568B standard
Resolution: up to [email protected] 4:4:4
Max 100meter with cat6/cat7 cable
CEC pass through
Support insert card modular rack mount
4. Specifications
Items | Specification |
Voltage/Current | DC12V/1A |
Power consumption | TX:<3W RX:<3W |
HDMI compliance | HDMI2.0, HDMI1.4 |
HDCP compliance | HDMI2.2 with lower |
HDMI input resolution supported | 1280x960,1280x800,1280x768,1680x1050, 1360x768,1366x768,1600x900,1024x768,800x600,3840*2160 60Hz |
HDMI output resolution supported | 1280x960,1280x800,1280x768,1680x1050, 1360x768,1366x768,1600x900,1024x768,800x600,3840*2160 60Hz |
Audio formats supported | L/R stereo audio |
Maximum transfer rate | 4.5Gbps |
Input and output TMDS signal | 0.5~1.5Vp-p(TMDS) |
Input and output DDC signal | 5Vp-p(TTL) |
Transmission length | 100m |
Input cable length supported | ≤8m(AWG24) |
Output cable length supported | ≤8m(AWG24) |
IR remote control | Supports IR passback with 20~60KHz frequancy |
USB | keyboard and mouse |
Transfer method | Over UTP/STP CAT6/7 |
Connector | RJ45 |
Electrostatic protection of the whole machine | 1a Contact discharge level 3 1b Air discharge level 3 Standard: IEC61000-4-2 |
Working temperature | 0~50ºC |
Storage temperature | -10~70ºC |
Humidity (no condensation) | 0~90% |
Dimension | 150.0(L) x 120(W) x 28(H)mm |
Material | Iron alloy material + crystal panel |
Finishing | Grit blast |
Color | Black |
Mean time between failures (MTBF) | >30000 Hours |

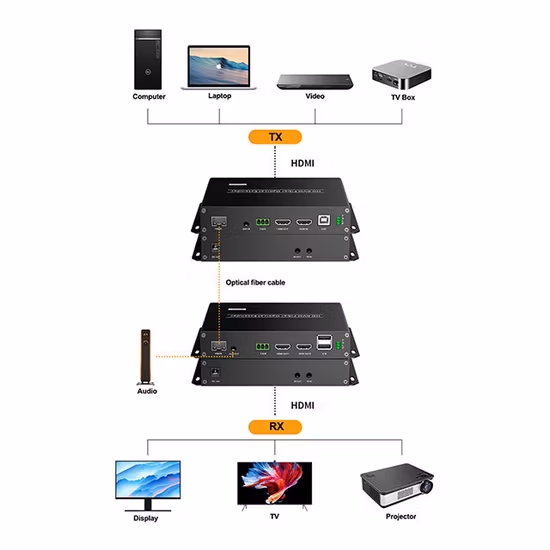

5. Application
Digital FPDs, PDPs and projectors for medical appliances, aero, traffic control, factory, and bank
Digital FPDs and projectors in conference room and auditorium
Kiosk with digital FPDs showing full motion graphic displays from remote systems
PDP displays for information in public sites
LED signboards in streets and in stadiums
