DESCRIPTION

Basic Info

Model NO.	RC7-02008K-8P
Video Input/Output	8 Channel
Audio	with Audio
Video File Logging Mode	Alarm Recording, Motion Detection Recording, Video Manual, Time Lapse Video
Hard Disk Size	8TB
Hdd Supported	1
Storage Interface	2 SATA
USB Interface	2 USB2.0
Poe	Support
Alarm Input	Support
Alarm Output	Support
Video Output	VGA/HDMI Sync Output
OEM&ODM	Support
Transport Package	Cartons
Specification	6PCS/Cartons
Trademark	FSAN
Origin	Made in China
HS Code	8521909090

Product Description

FEATURES

-8CH full real-time network video access, 1U NVR case
-H.265/H.264 dual-stream decoding, embedded linux operation system
-Support sync video recording, remote monitoring, backup
-Support VGA/HDMI sync output, HDMI support 2160P HD preview
-Support amplification preview and playback video image
-Standard ONVIF, RTSP,GB28181 protocol
-Support alarm snapshot, alarm email sending
-Support DDNS, EMAIL, UPNP, NTP, P2P,etc
-Support WEB, mobile viewer, Client, CMS monitoring
-Support external alarm,bidrectional talk
-Support 8CH POE
-Support SMART IPC intelligent function Target counting, left/lost, electronic fence, line crossing detection, retrograde detection, off-site detection
-Support grouping disk quota, and disk inventory two storage pattern, distribute different video storage capacity or cycle according to different channels
-Support IPC centralized management, including IPC parameters configuration, import and export information, information real time acquisition and upgrade, etc
-Support IP Filter
-Support channel grouping, preview round touring
-Support network detection(network flow monitoring, network wireshark, network clear)function,etc
-Support max 8CH sub-stream record sync playback and multi-channel sync play backward
-Support instant playback
-The new UI interface, support a key to open the video recording
-Support dual password authentication

SPECIFICATION

	RC7-02008K-8P
VIDEO
Network video input	8CH
Network access bandwidth	80Mbps
Video compression	H.265 /H.264
Video output	1CH VGA output (1920×[email protected],1280×[email protected])
	1CH HDMI output (3840×[email protected],1920×[email protected],1280×[email protected])
Display mode	sync output
System mode	8ch digital+9ch preview+8ch playback
Video bit rate	16-16000Kbps
Video resolution	4K/5MP/4MP/3MP/1080P/960P/720P/D1/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Image display	1/4/6/8/9 image display
Snapshot mode	Support timing snapshot, manual snapshot, JPEG format
Motion detection	Support 396(22*18) surveyed area can be set in every screen and multi-level sensitivity adjustable
Privacy mask	Support 4 zones
Intelligent detection	Target count, left/lost, electronic fence, line crossing detection, retrograde detection, off-site detection,support SMART IPC intelligent function
AUDIO
Audio compression	G.711u
Audio input	1CH, RCA interface (IPC complex audio input)
Audio output	1CH, RCA interface
Bidirectional talk input	Bidirectional talk, RCA interface
VIDEO RECORDING AND PLAYBACK
Video frame rate	1-30fps
Record mode	Manual/timing record and alarm record/timing/intelligent analysis alarm/stop record
Playback ability	Support 1CH 4K/5MP/4MP/3MP; 4CH1080P; 8CH sub-stream record sync playback
Playback mode	Instant playback, Local video, playback capture, External file playback
Record search	Time, calendar, event search, channel search(ANR, regular video, motion detection video, alarm video, intelligent detection video)
Video playback	Start, stop, normal play, back play, forward 30 seconds, backward 30 seconds, fast play(1-256X), slow play(1-1/32X),1/4/9 split screen, previous page, back page, frame play, display the hidden progress bar, snapshot, backup,full screen, roller amplification time bar precise playback
STORAGE AND BACKUP
Storage interface	2 SATA
HDD capacity	Single max.8T
Disk grouping	According video channels to set HDD quantity
Disk quota	According video channels to set HDD storage capacity
Backup location	Local, network, IPSAN
Array type	/
Backup method	USB mobile hard disk, U disk, network backup
ANR	Support FSAN IPC(with TF card)ANR
FUNCTION
Network protocol	TCP/IP,HTTP,HTTPS,DDNS,SMTP(SSL),DHCP,PPPoE,UPnP,NTP,P2P
Interface protocol	ONVIF, RTSP,GB28181
Protocol port	ONVIF/ RTSP/ HTTP/ HTTPS/ RTMP port customized
Mobile surveillance	Support Apple, Android
Internet explorer	Support IE, Chrome, Firefox, Safari
Display function	Channel shortcuts: Modufy channel, 3D positioning, show AI intelligent rules and result, snapshot, bidrectional talk,channel audio, manual record, Instant playback, video parameter
	DTPR: audio input, volume, alarm info(arming/disarming), P2P cloud service, network info, output adjustment,system info,device list(display whether IPC online, record type), structure (customized channel classification, facilitate quick preview), group round touring, 1/4/6/8/9 split screen, start round touring, start preview linkage, backup, full screen, OSD can be hidden, Yutai control
IPC timing	Manual/ auto/ timing /reconnect timing IPC timing
Alarm linkage	Send email, audible warning(buzzer), alarm on monitor, upload to center, record, snapshot, preview, PTZ linkage
Network detection	Flow monitoring, network wireshark, network test
User management	User add, delete, modify, permission management, FACEeye scan qrcode to retrieve password
	Auxiliary users(secondary password protection)
Manage IPC	Modify IPC parameters, IPC upgrade
Other	/
EXT INTERFACE
Network interface	1*RJ45 100M /1000M Ethernet port
POE interface	8CH(IEEE 802.3af), Max. power output ≤80W
Alarm input	4CH
Alarm output	1CH
RS-485	1CH
USB interface	Rear panel: 2 USB2.0

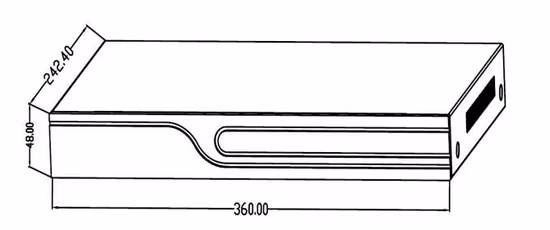

DIMENSIONINTERFACE

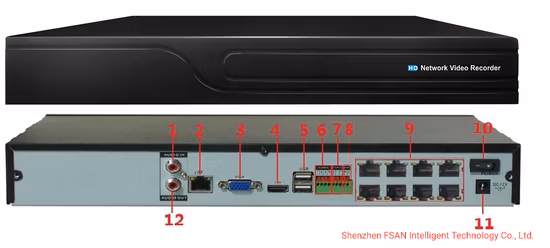

1. Audio input 2. RJ45network interface 3. VGA video output 4. HDMI video output 5. USB 2.0 6. Alarm input
7. Alarm output 8. RS485 9. PoE interface 10.Power switch 11. DC48V 12.Audio output
